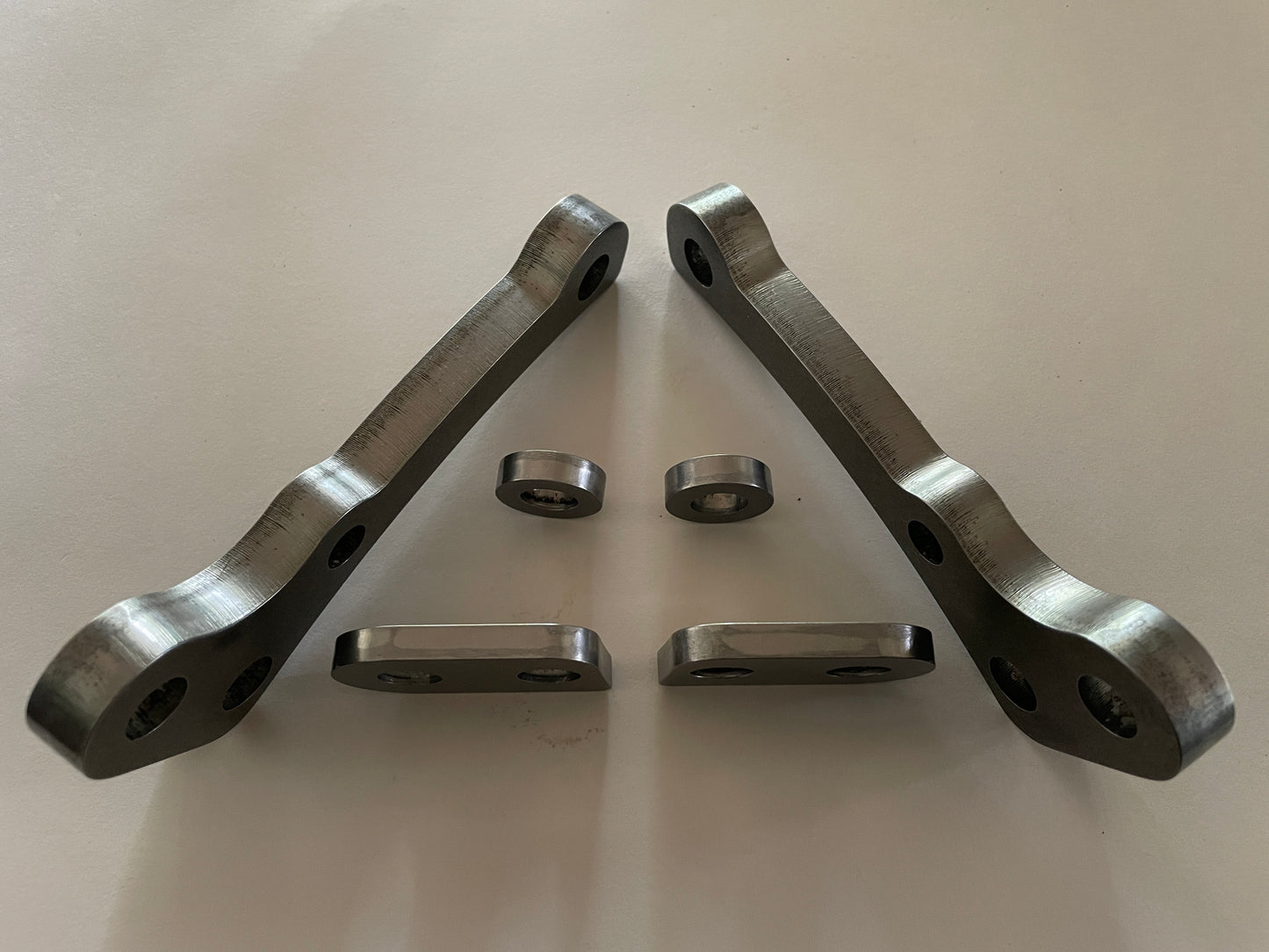

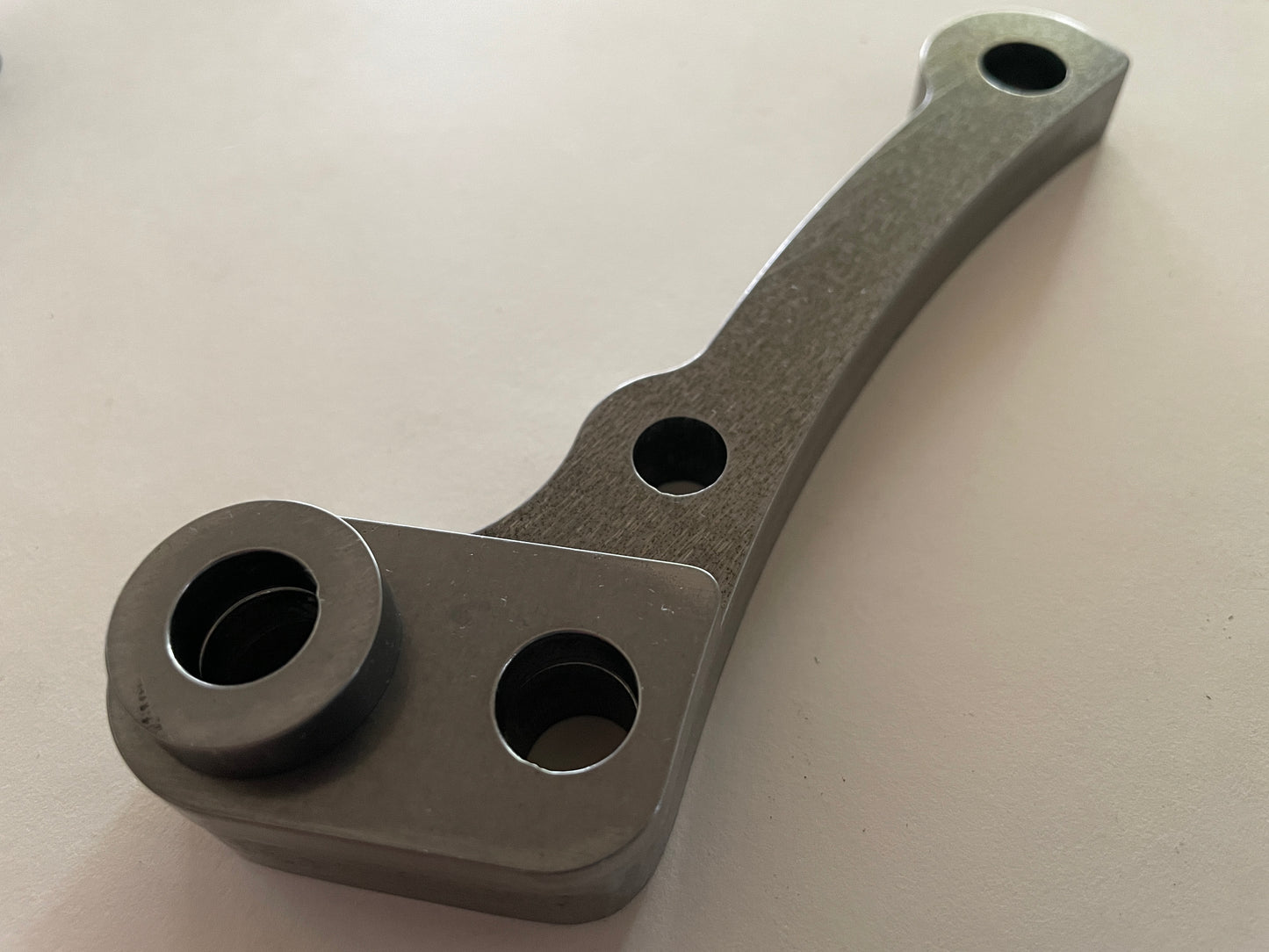

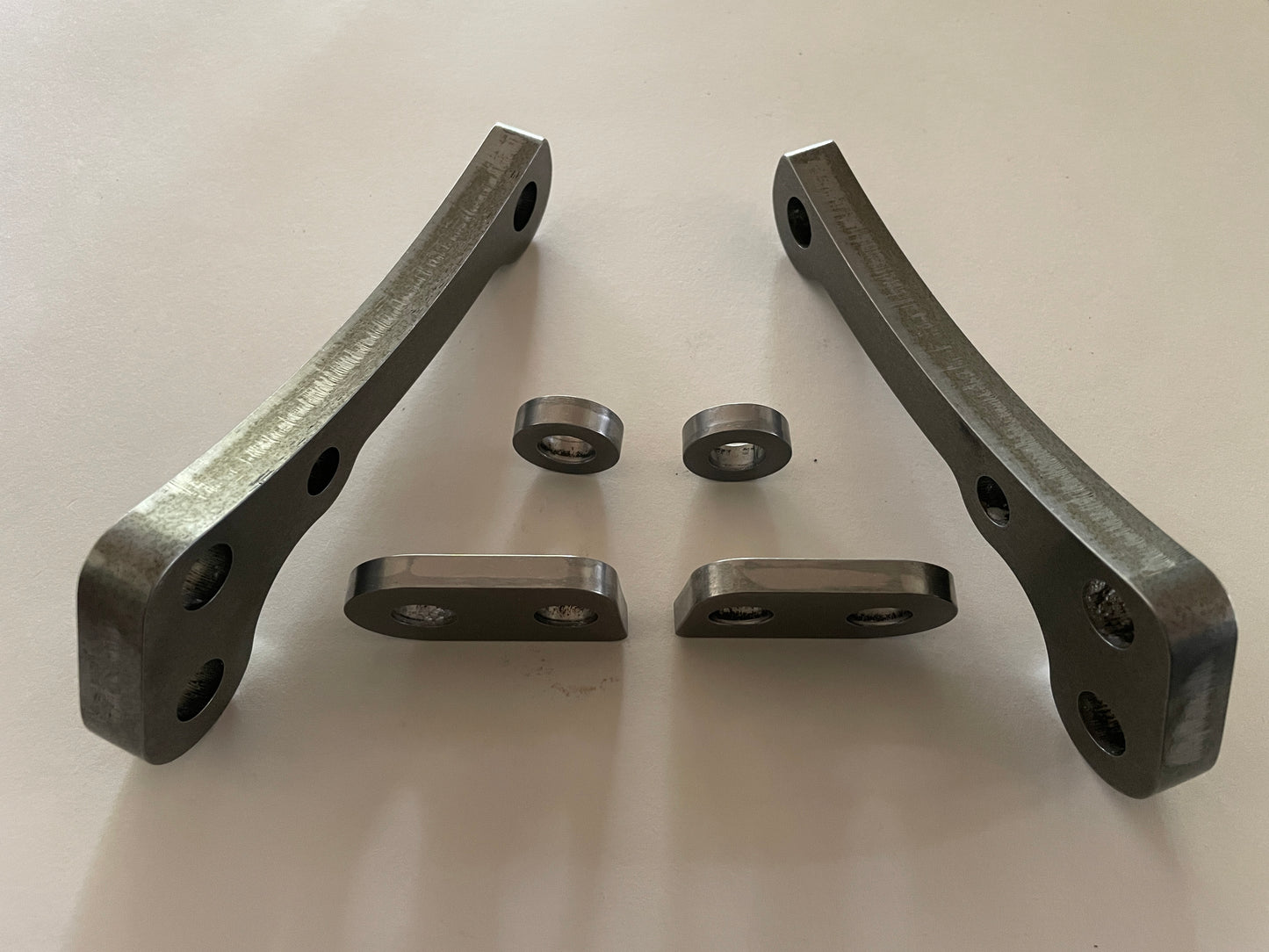

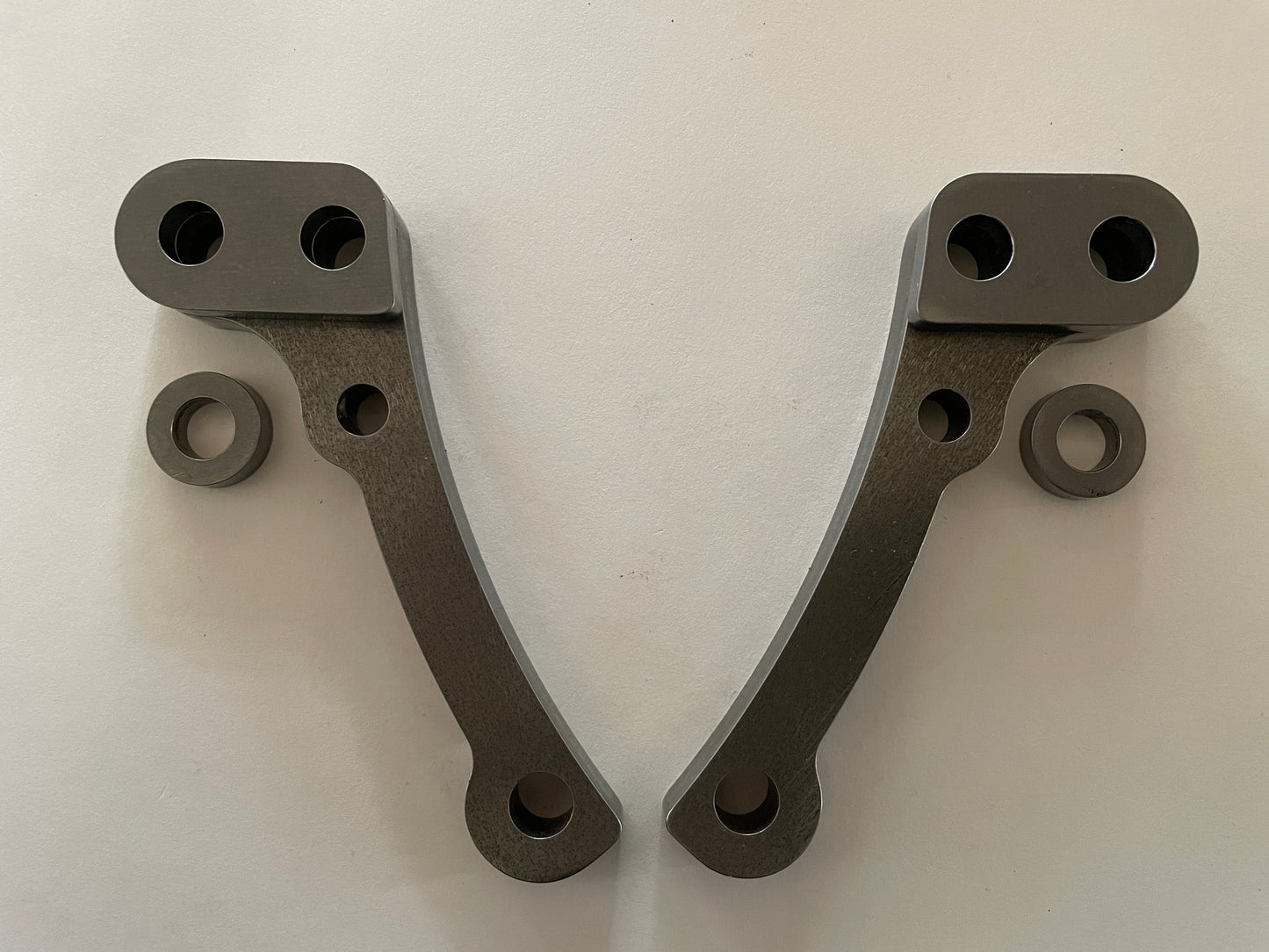

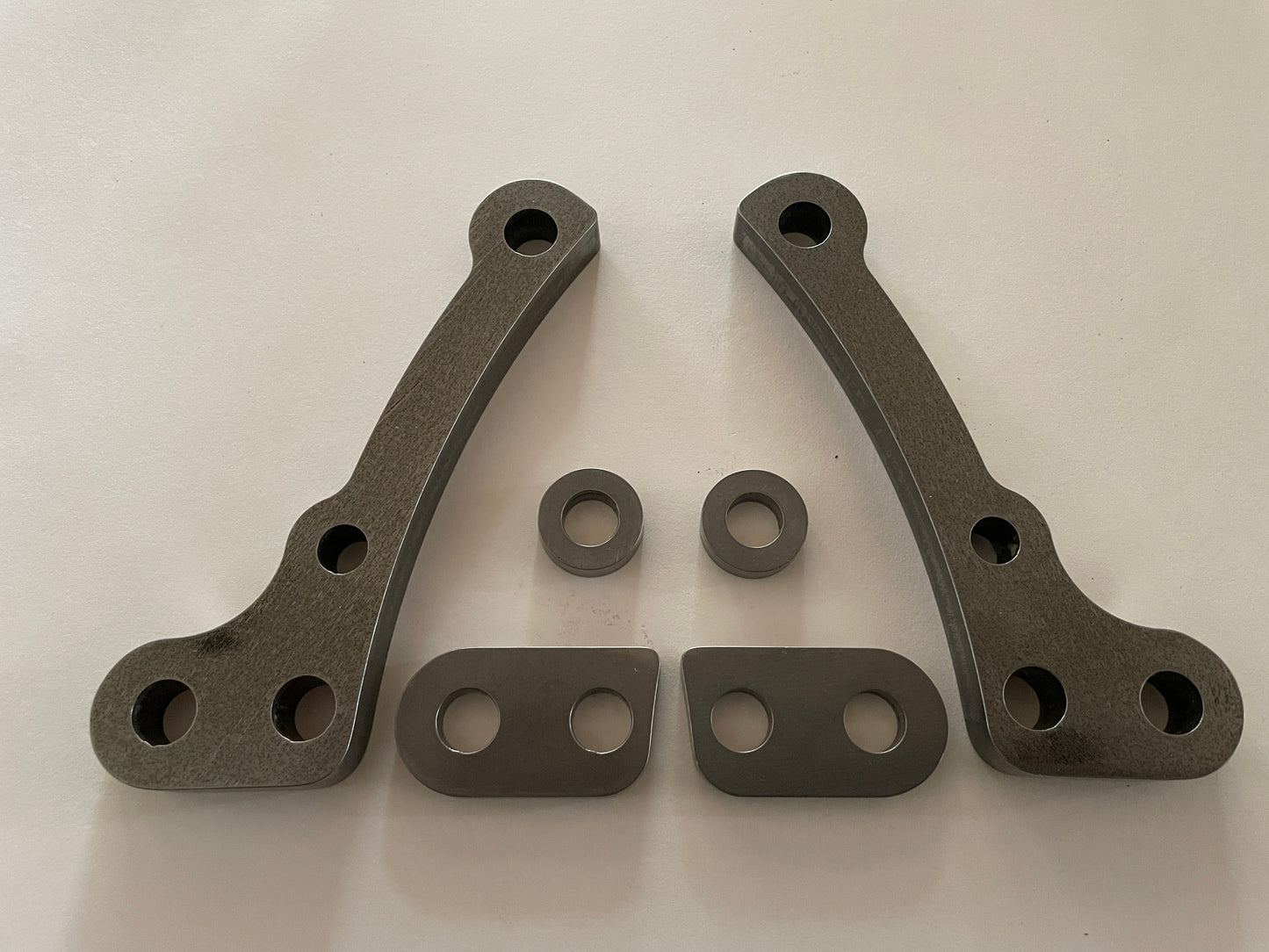

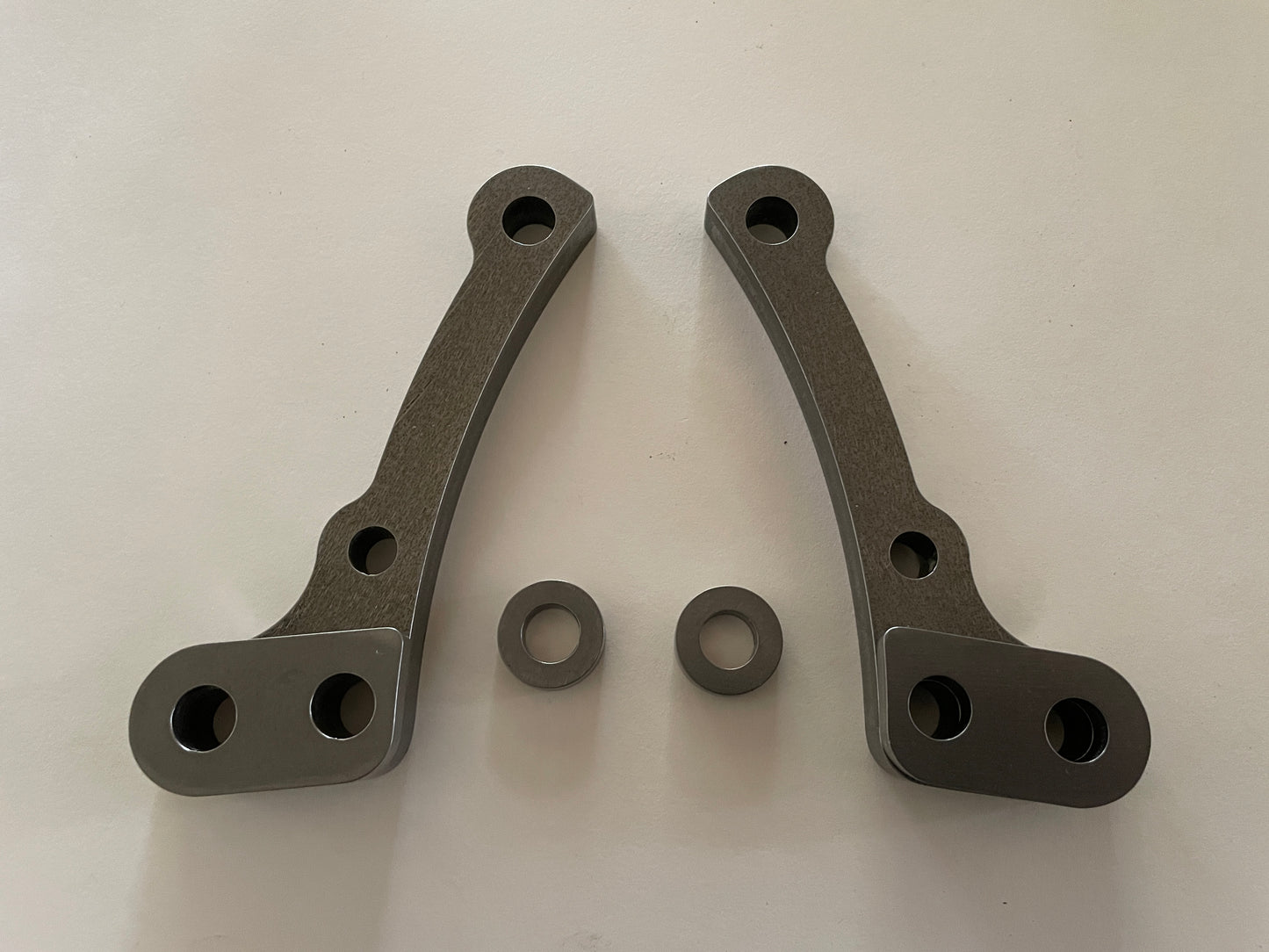

Ford Flathead 8BA Anti-Chatter Rod Conversion Brackets
If you are installing a 49-51 Ford Flathead 8BA in your earlier pre-49 Ford V8, these are the brackets you’ll need to attach your factory anti-chatter or steady rods to your newer model Flathead engine.
The main brackets are laser cut and tumbled from 1/2” steel and the smaller spacer are laser cut and tumbled from 1/4” steel.
These mounts bolt to the factory bell housing with two bolts per side (not included) using existing holes and provide the additional hole needed for your anti-chatter rod. Spacers are included to eliminate the need to modify your anti-chatter rods factory flanged and threaded end. Shortening of the overall length of the rods may still be required. The brackets will work with cast bell housings as well as the stamped bell housings with proper spacing. Spacing will need to be determined by the installer which will be determined by your stamped bell housing and your anti-chatter rod length. It’s pretty much self-explanatory when installing, but if not, we are here to help. No hardware is included but 1/2”-3/4” longer bolts will be required. Available only in bare steel.
If you have any questions, please ask. Thanks for looking.
Made in the USA by NW Classic Parts
